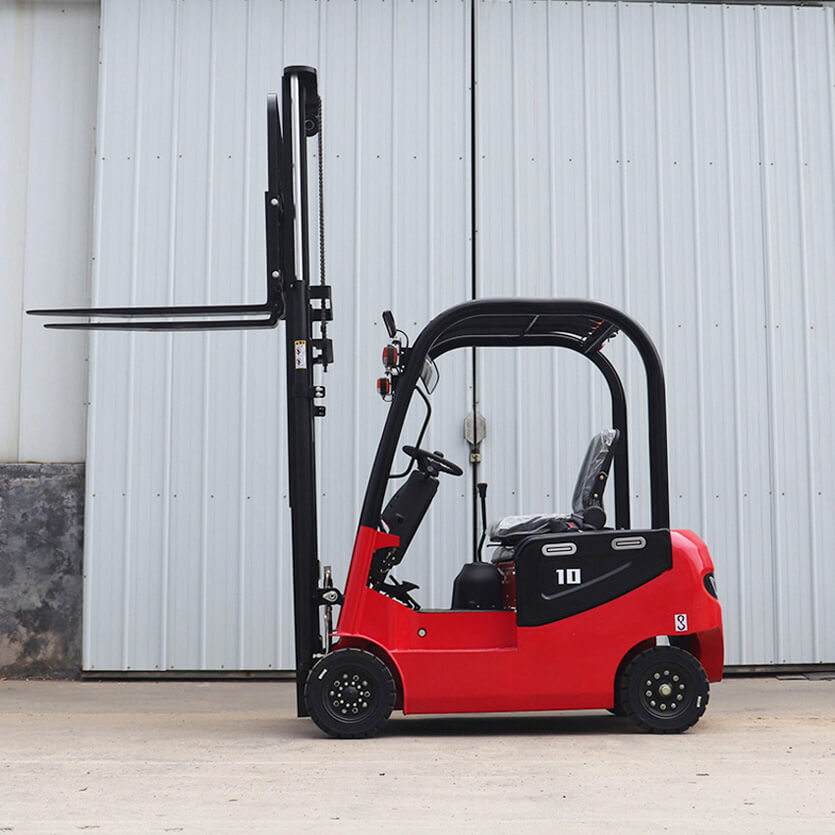

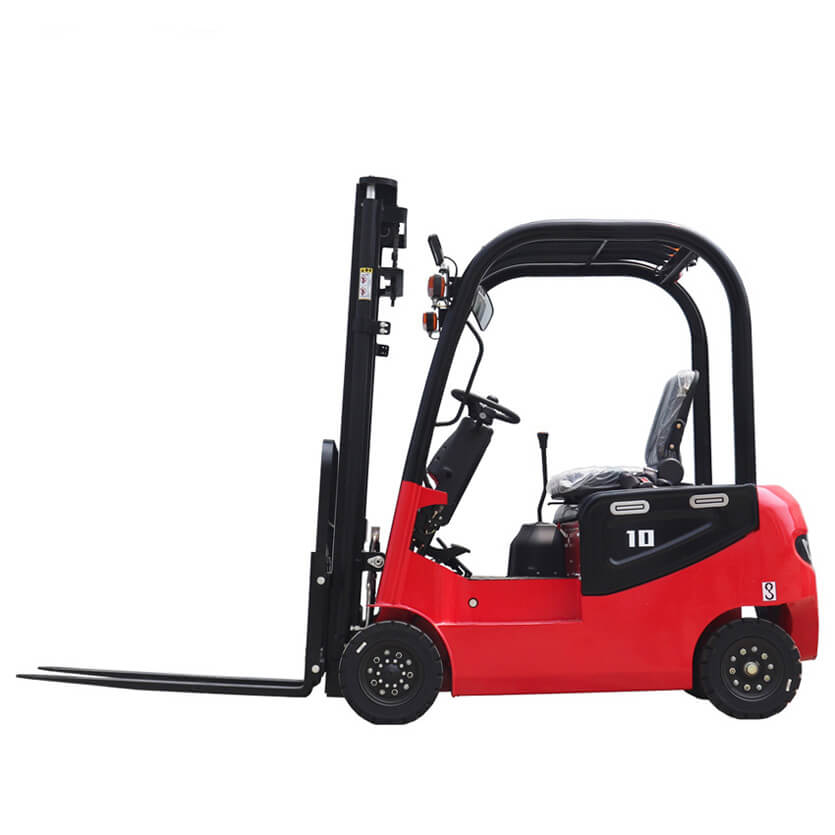

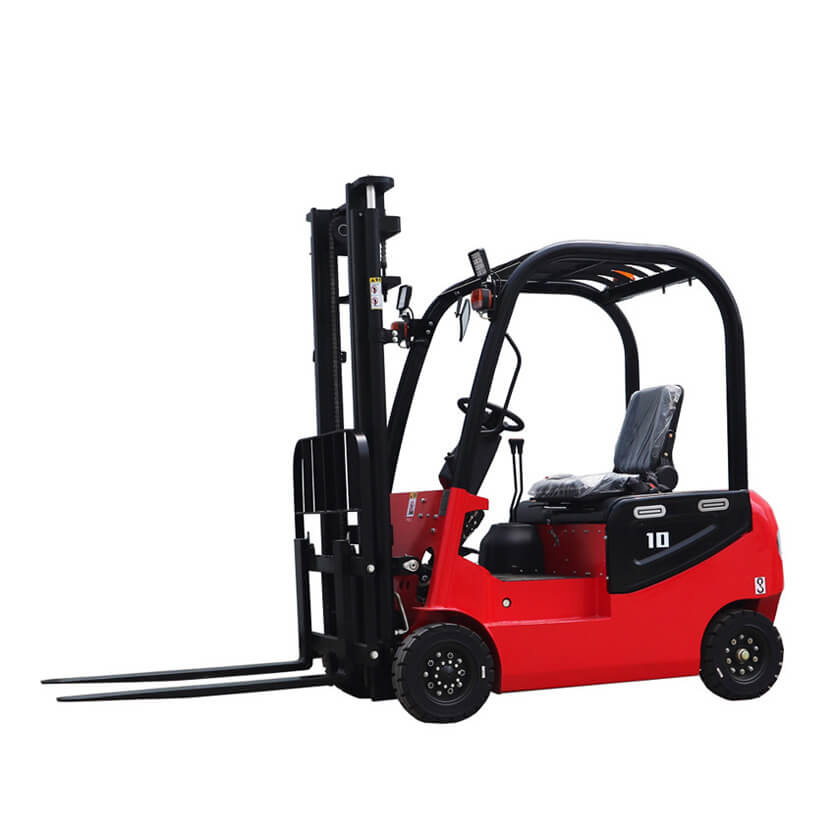

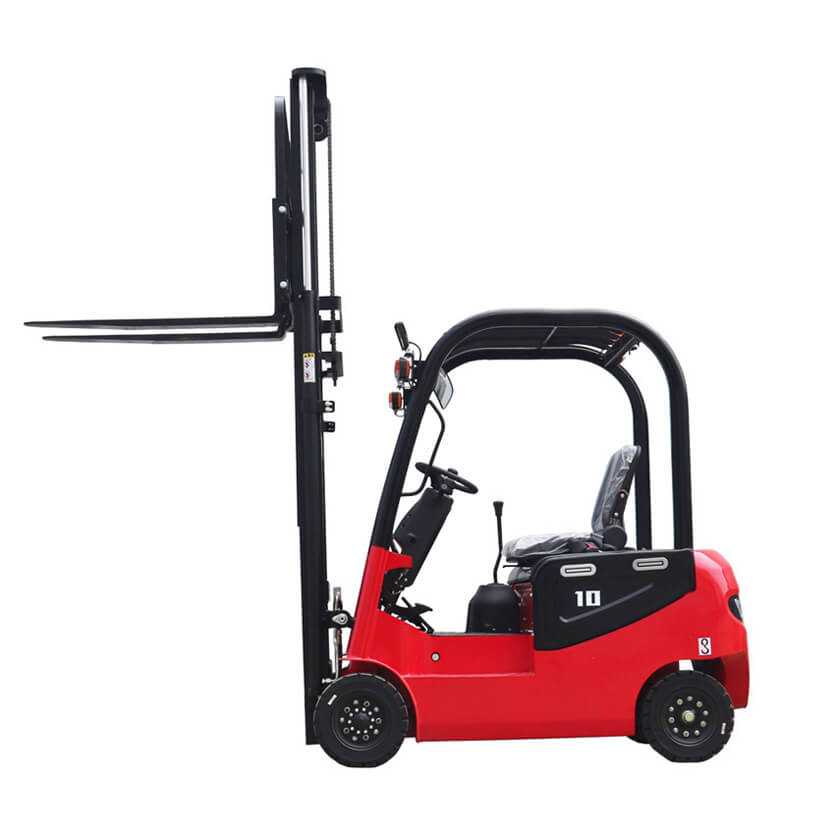

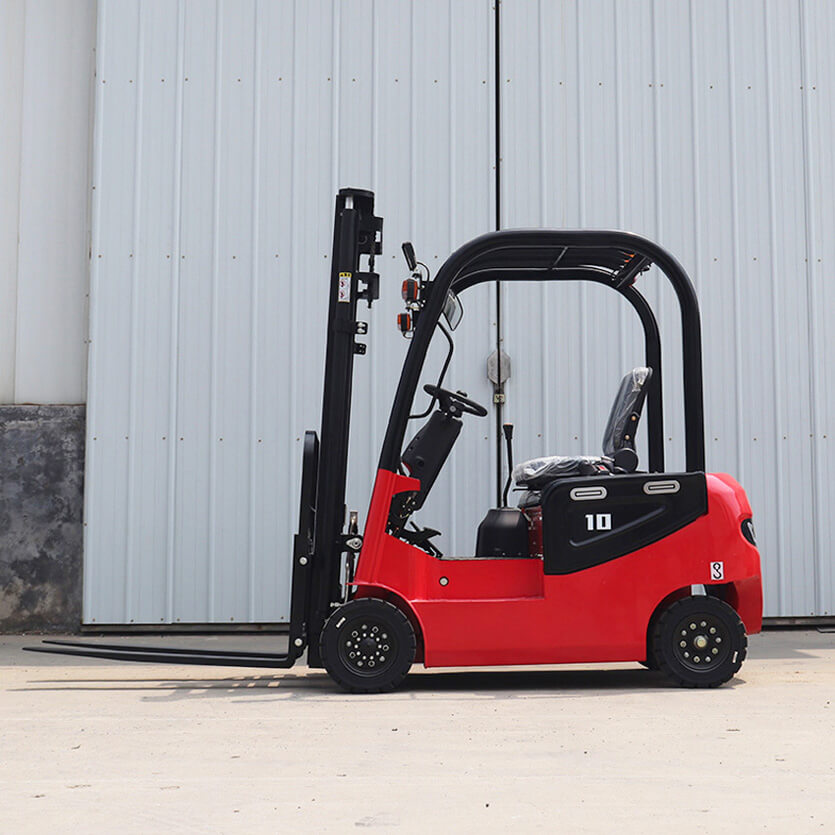

JG-10E Electric Forklift
1.Mechanical control,easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Rubber tires, strong grip, not easy to slip.
6.High-quality hydraulic cylinder, good sealing, not easy to leak oil.
7.Optional lead-acid and lithium batteries
Product Description
| Characteristics | ||
| Model | Unit | JG-10E |
| Driving mode | seated | |
| Rated capacity | kg | 1000 |
| Load center distance | mm | 500 |
| Power mode | lead-acid battery | |
| Wheelbase | mm | 1330 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 10/11 |
| Lifting speed,laden/unladen | mm/s | 220/230 |
| Lowering speed,laden/unladen | mm/s | 550 |
| Maximum negoniable gradient,laden/unladen | % | 15/20 |
| Weight | ||
| Service mass(with battery) | kg | 1530 |
| Axle load:unloaded,front/rear | kg | |
| Axle load:loaded,front/rear | kg | |
| Battery voltage /nominal capacity | V/Ah | 60V/120Ah |
| Battery weight | kg | 150 |
| Electrical configuration | ||
| Drive motor power-60 minutes | kW | 5 |
| Lift motor power-15 minutes | kW | 4.5 |
| Drive motor controlling mode | MOSFET/PMSM | |
| Lifting motor controlling mode | MOSFET/PMSM | |
| Service brake/parking brake | Hydraulic/Mechanial | |
| Tyre | ||
| Tyre type | Solid tire | |
| Wheels number(front/rear) | 2/2 | |
| Front track | mm | 910 |
| Rear track | mm | 865 |
| Tyre(front) | 15*4 1/2-8 | |
| Tyre(rear) | 15*4 1/2-8 | |
| Size | ||
| Front overhang | mm | 308 |
| Tilt of the mast,front/rear | ° | 5/10 |
| Height,mast retraction | mm | 2017 |
| Free lift height | mm | / |
| Overall maximum lift height | mm | 3000 |
| Height,mast extended | mm | 3957 |
| Overhead guard height | mm | 1847 |
| Lateral Fork Adjustment(Outside of Forks)Max/Min | mm | 970/200 |
| Fork size(TxWxL) | mm | 32*100*1070 |
| Truck body length(fork excluded) | mm | 1980 |
| Truck body width | mm | 1020 |
| Turning radius | mm | 2050 |
| Groubd clearance under mast | mm | 77 |
| Ground clearance at center of wheelbase(laden) | mm | 100 |
| Width of aisle right-angle stacking (pallet1000x1000mm clearance 200mm) | mm | 3400 |
| Width of aisle right-angle stacking (pallet1200x1200mm clearance 200mm) | mm | 3650 |
