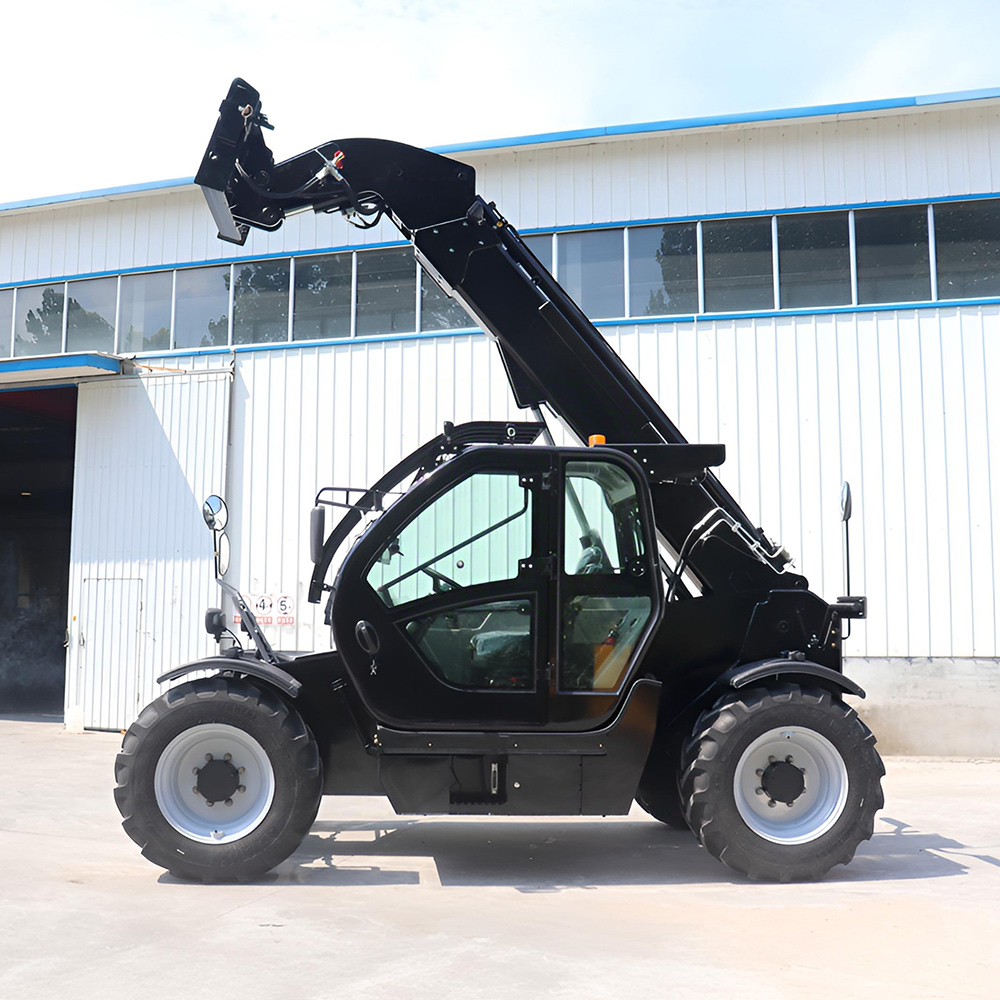

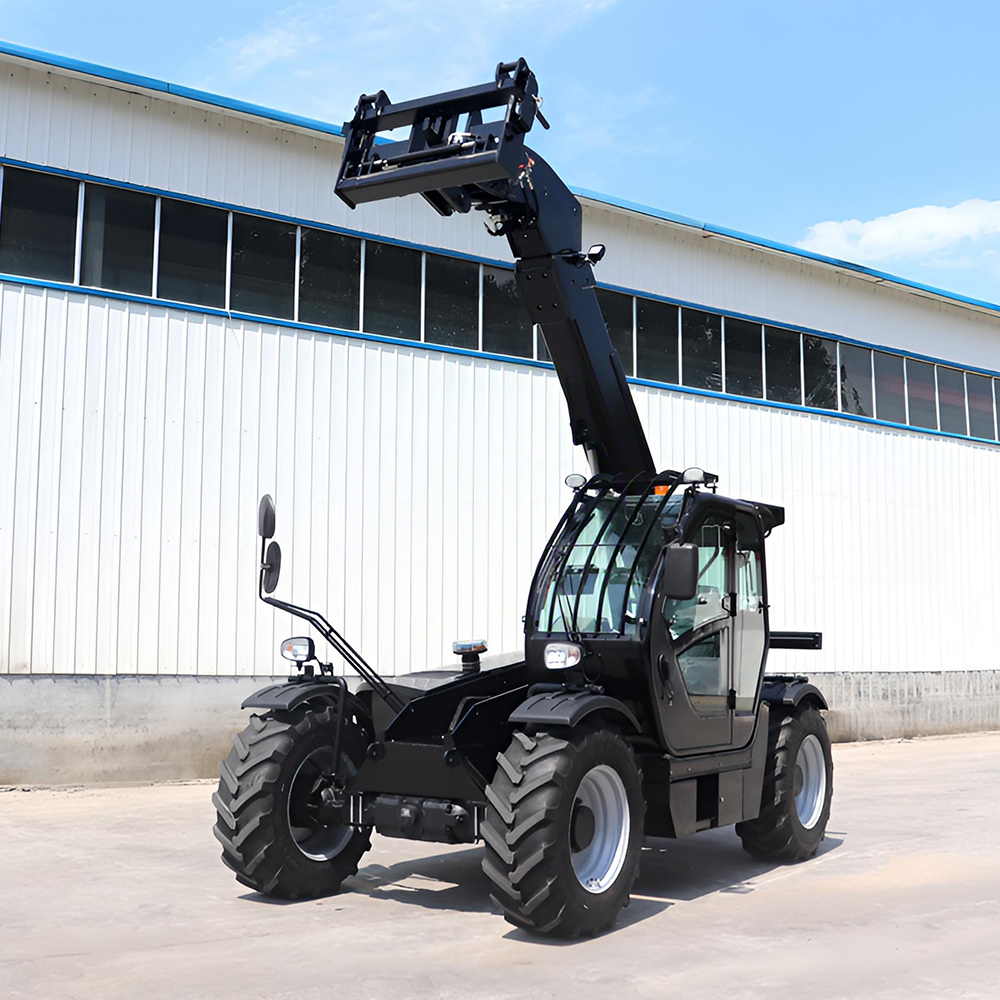

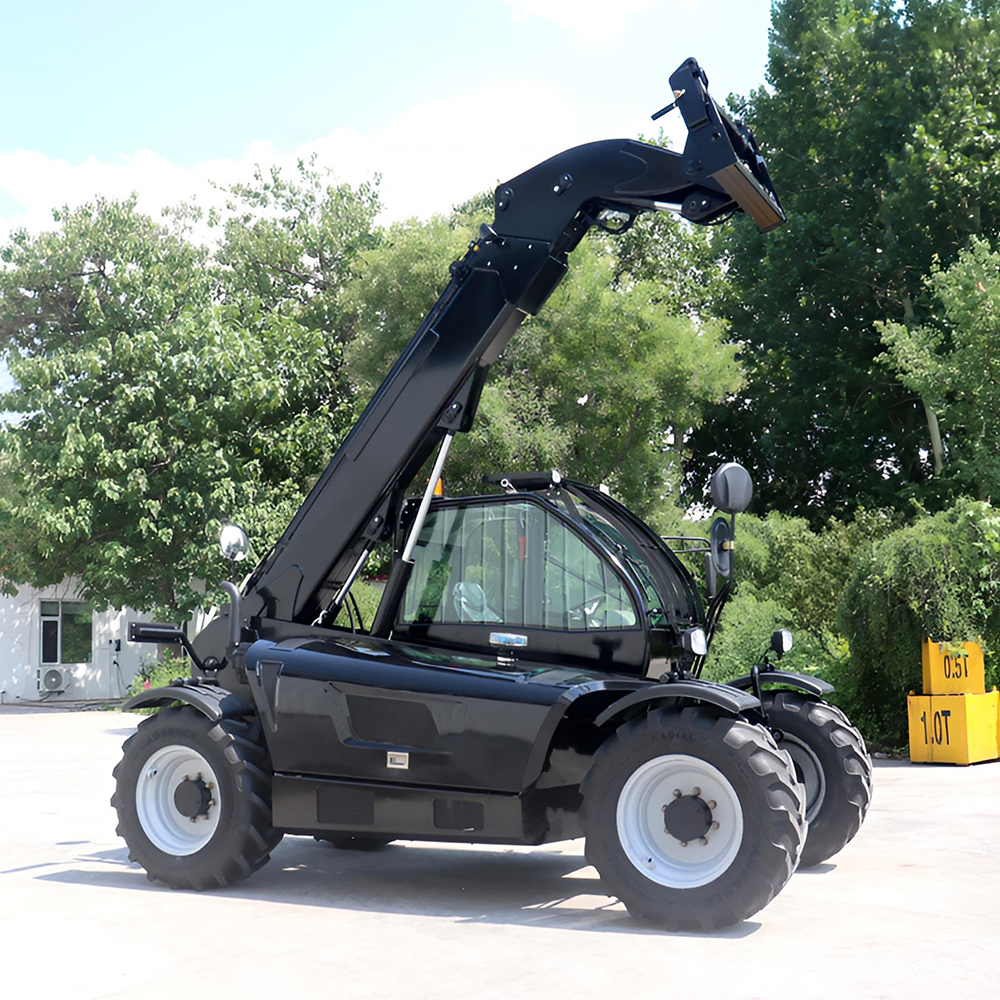

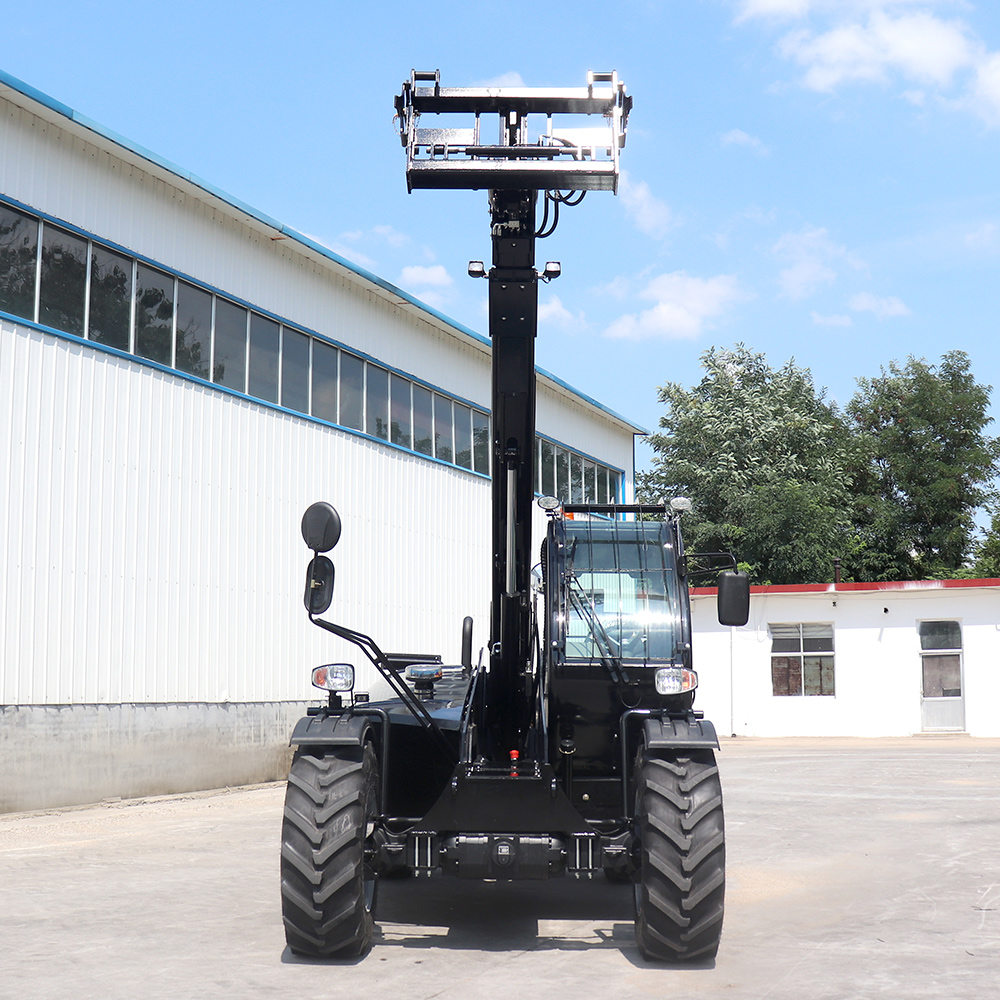

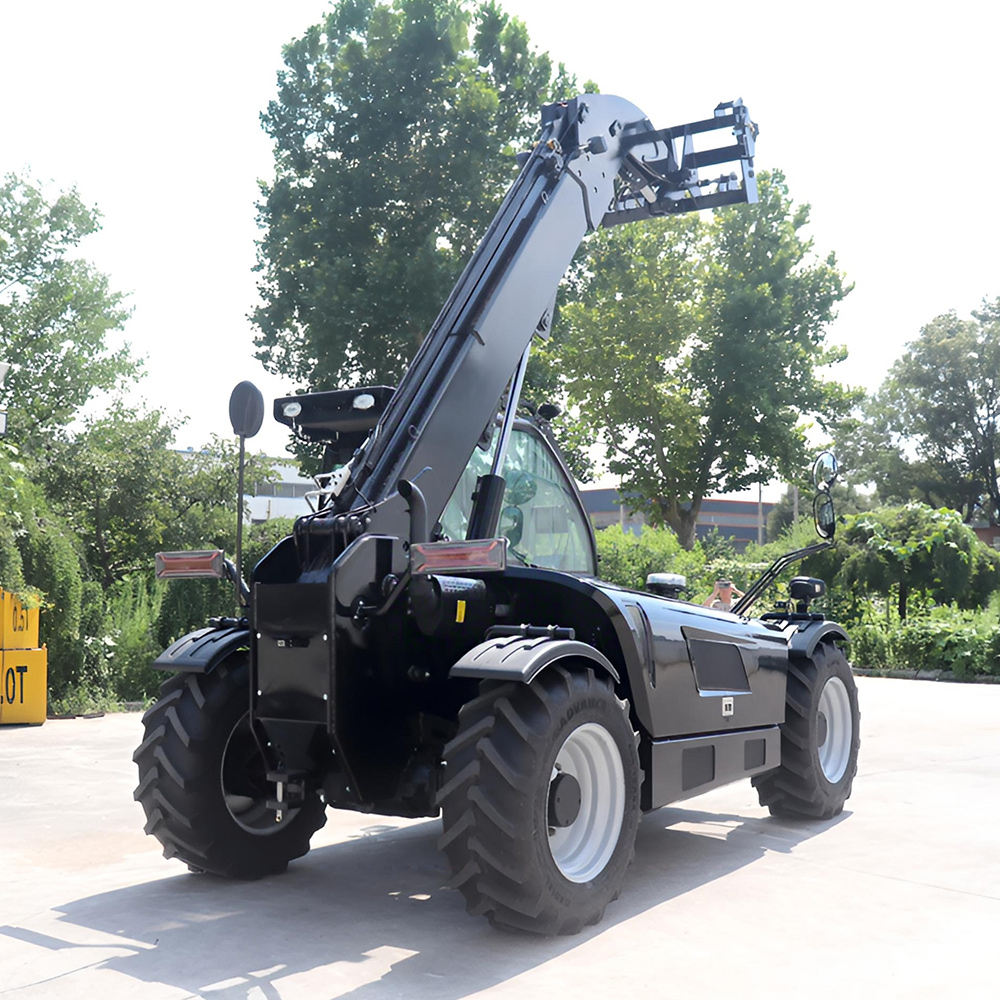

HS-T4007 Telehander
1.The telescopic forklift is four-wheel drive and equipped with large off-road tires and a robust chassis, enabling it to travel and operate stably in muddy, sandy, rugged, and other harsh road conditions.
2.The boom can extend far forward, enabling direct loading and unloading without moving the vehicle. Goods can be placed directly into the truck bed or over obstacles for loading and unloading
Product Description
| Model | HS-4007 | Tilt-up angle | 12 ° |
| Max. capacity | 4000 kg | Tilt-down angle | 114 ° |
| Max. lifting height | 7.0 m | External turning radius(over tyres) | 4.25 m |
| Max. outreach | 3.2 m | Unladen weight(with fork) | 8100 kg |
| Overall length to carriage | 4.65 m | Tires type | Tubeless |
| Length to face of forks | 5.87 m | Standard tires | 440/70-24 |
| Min transport size | 4.4 m | Forks length/ width/ section | 1220 mm x 125 mm / 50 mm |
| Overall width | 2.2 m | Lifting | 10 s |
| Track width | 1.75 m | Lowering | 7 s |
| Overall height | 2.55 m | Extension | 12 s |
| Wheelbase | 3.15 m | Retraction | 8.6 s |
| Ground clearance | 0.35 m | Crowd | 4.8 s |
| Overall cab width | 0.84 m | Dump | 3.4 s |
