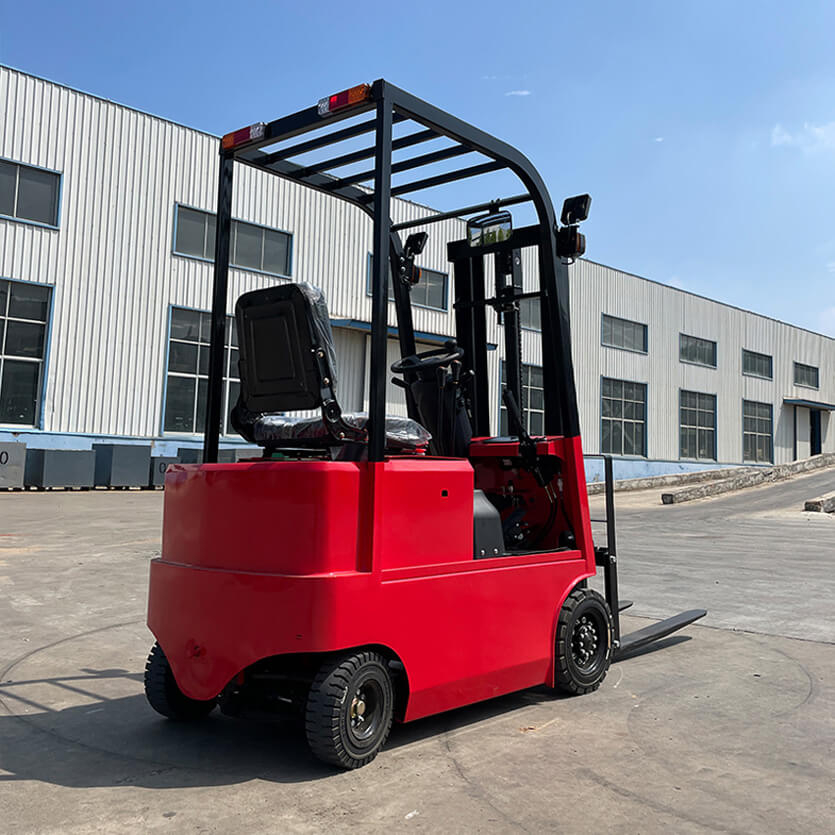

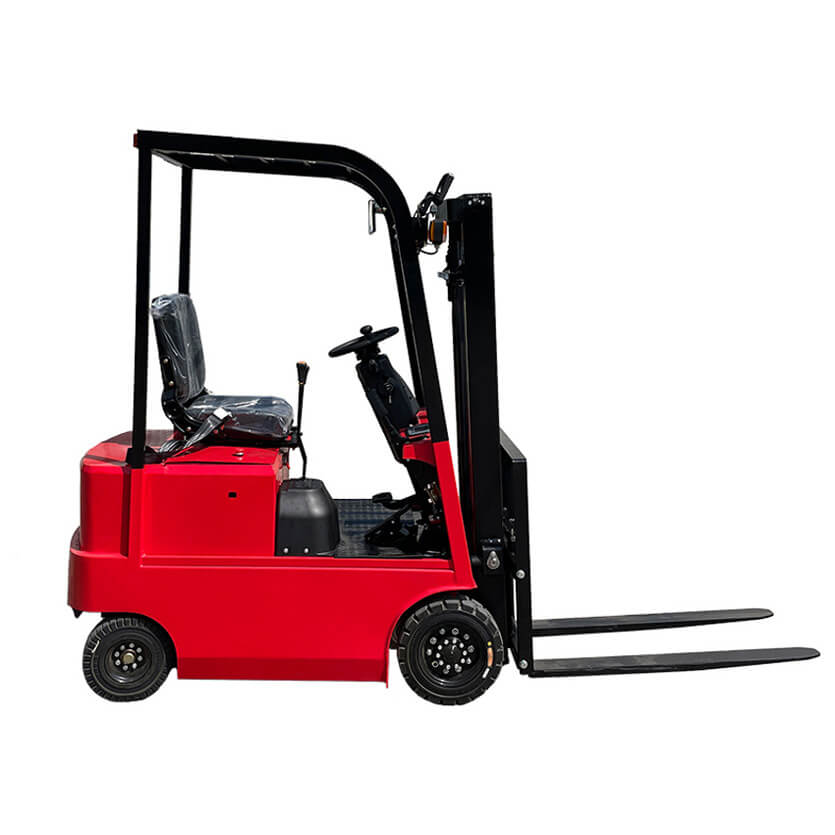

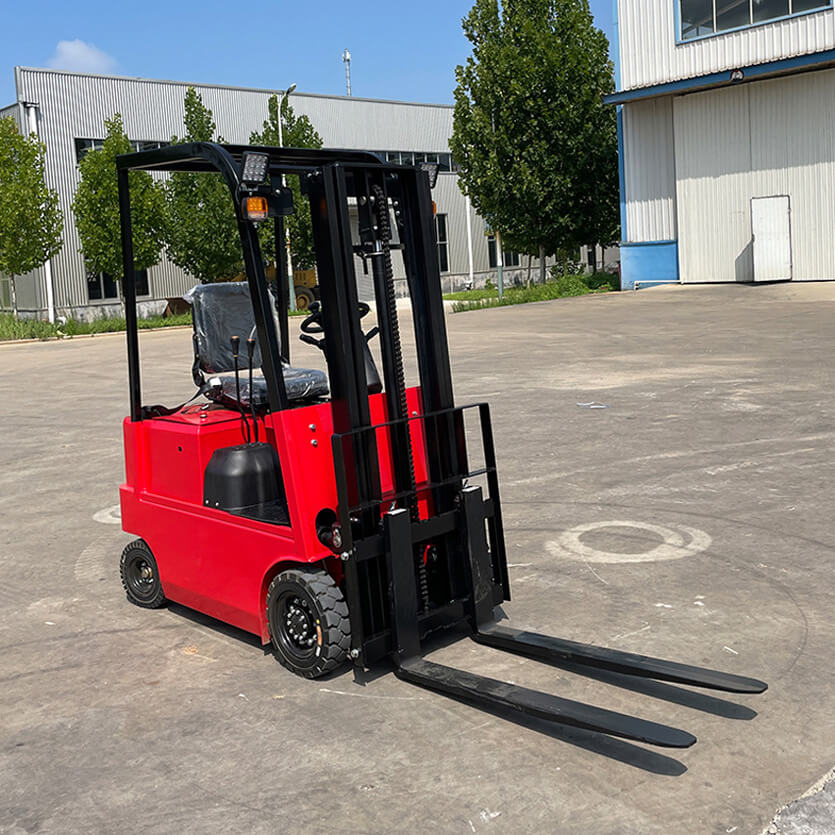

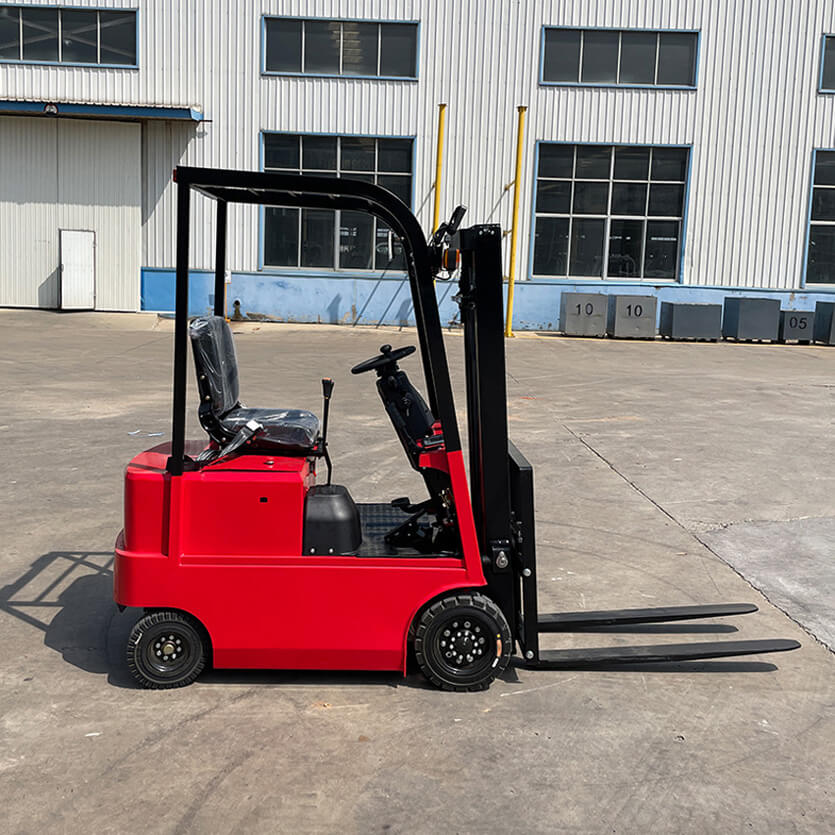

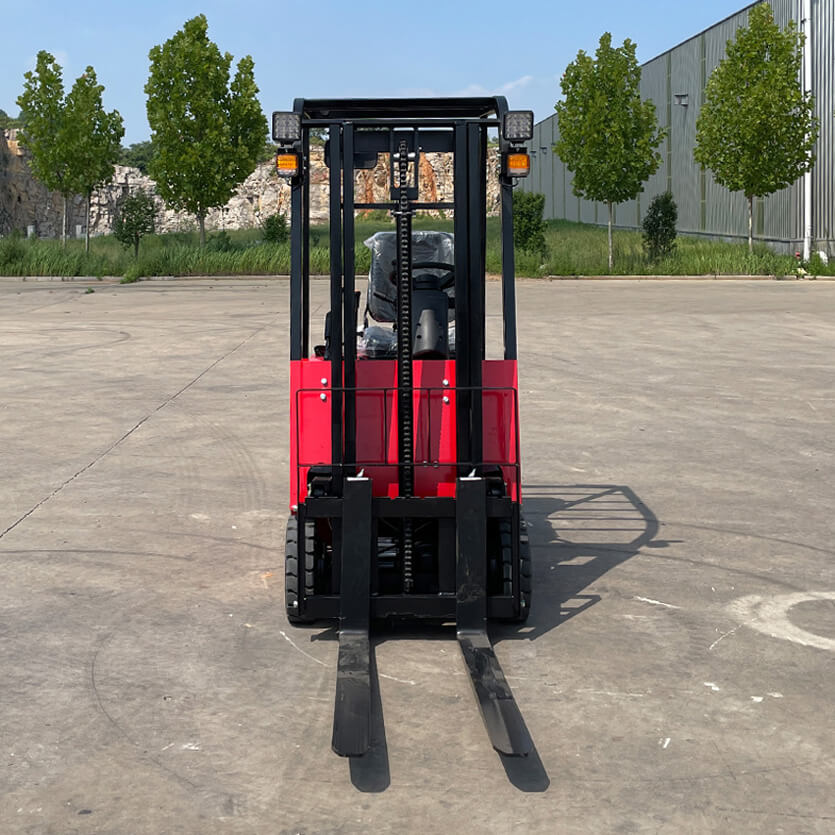

JG-07 Electric Forklift
1.Mechanical control,easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Rubber tires, strong grip, not easy to slip.
6.High-quality hydraulic cylinder, good sealing, not easy to leak oil.
Product Description
| Characteristics | ||
| Model | JG-07 | |
| Driving mode | seated | |
| Rated capacity | kg | 750 |
| Rated lifting height | mm | 2000 |
| Load center distance | mm | 350 |
| Power mode | lead-acid battery | |
| Tyre | ||
| Tyre type | solid tyre | |
| Wheels number(front/rear) | 2/2 | |
| Tyre(front) | 15X4.5-8 | |
| Tyre(rear) | 3.00-5 | |
| Size | ||
| Tilt of the mast,front/rear | ° | 4/6 |
| Overhead guard height | mm | 1950 |
| Fork size(TxWxL) | mm | 80X30X800 |
| Truck body length(fork excluded) | mm | 1670 |
| Truck body width | mm | 850 |
| Turning radius | mm | 1700 |
| Groubd clearance under mast | mm | 80 |
| Ground clearance at center of wheelbase(laden) | mm | 60 |
| Performance | ||
| Travel speed,laden/unladen | km/h | 8/9 |
| Lifting speed,laden/unladen | mm/s | 230/250 |
| Lowering speed,laden/unladen | mm/s | 450 |
| Maximum negoniable gradient,laden/unladen | % | 15/15 |
| Weight | ||
| Service mass(with battery) | kg | 1200 |
| Battery weight | kg | 48 |
| Electrical configuration | ||
| Drive motor | kW | 3 |
| Lift motor | kW | 3 |
| Battery voltage /nominal capacity | V/Ah | 48V/120Ah |
